Engineering Plastic Injection Molding

To efficiently process these high-performance materials, specialized injection molding processes are required. Custom mold design, precision manufacturing, and expert control of molding parameters are essential for ensuring high-quality, reliable parts. Let’s break down the key aspects of customizing molds for PEEK, PPS, PPSU, and PEI:

1. Overview of High-Temperature Materials

• PEEK (Polyetheretherketone): Known for its exceptional thermal stability, high chemical resistance, and excellent mechanical properties, PEEK can withstand continuous exposure to temperatures of up to 250°C and short bursts up to 300°C. It is commonly used in aerospace, automotive, and medical devices.
• PPS (Polyphenylene Sulfide): PPS is highly resistant to heat, chemicals, and oxidation. With continuous operating temperatures of up to 260°C, PPS is used in high-performance applications like automotive components, electrical connectors, and industrial equipment.
• PPSU (Polyphenylsulfone): PPSU is a high-performance plastic with superior impact resistance, chemical resistance, and thermal stability (up to 200°C continuous use). It is commonly used in medical devices and plumbing components.
• PEI (Polyetherimide): PEI is known for its excellent mechanical strength, dimensional stability, and resistance to heat and chemicals. It can withstand temperatures up to 200°C in continuous use and is used in demanding applications like electronics, automotive, and medical industries.

2. Custom Mold Design for High-Temperature Materials

When designing molds for high-temperature plastics like PEEK, PPS, PPSU, and PEI, several factors need to be considered:

a. Material Compatibility & Mold Materials

• Mold material selection: The mold itself must be made from materials capable of withstanding high temperatures and ensuring longevity. Commonly used materials for these molds include H13 tool steel, S7 steel, or Stainless steel. These steels offer excellent heat resistance and toughness, ensuring mold durability even under high thermal stress.
• Surface treatment: The mold may require additional coatings, such as hard chrome plating or nickel plating, to improve wear resistance, prevent corrosion, and extend the mold’s lifespan.

b. Cooling System Design

• Efficient cooling: High-temperature polymers like PEEK and PPS require effective cooling to maintain precise dimensional control during the injection molding process. The mold should be equipped with advanced cooling channels that can handle high temperatures without leading to deformation or excessive cycle times.
• Cooling rate control: Cooling rate has a direct effect on the molded part’s final properties. A well-designed cooling system ensures that heat is evenly dissipated throughout the mold, avoiding issues like warping or inconsistent part quality.

c. Mold Venting

• Precise venting: High-performance plastics are often more difficult to inject due to their higher melt viscosity. Proper venting is necessary to expel air and gases from the mold cavity to avoid defects such as burns or incomplete filling.
• Vent placement: The vent locations must be strategically designed to allow gases to escape without compromising part integrity. This is especially important when molding high-viscosity materials like PEEK and PPS.

d. Gate Design

• Gate design for high-viscosity materials: PEEK, PPS, PPSU, and PEI have higher viscosities compared to standard thermoplastics, which means the gate design must be optimized to facilitate smooth flow. Common gate types used for high-performance materials include hot runner systems, valve gates, or pinpoint gates.
• Gate location: Proper gate placement is essential for uniform filling and optimal part performance. This will ensure minimal stress concentrations and maximize the mechanical properties of the molded part.

3. Injection Molding Process Optimization

a. Injection Pressure and Speed

• Injection pressure control: High-temperature plastics require higher injection pressures due to their high melt viscosities. The pressure must be optimized to achieve proper fill while preventing defects like flash or incomplete filling.
• Injection speed: The speed at which the plastic is injected can affect the quality of the part. For high-temperature materials, a controlled injection speed is required to ensure the material fills the mold uniformly without causing premature solidification or jetting.

b. Temperature Control

• Melt temperature: The melt temperature of the polymer needs to be carefully controlled to ensure that the material is in the optimal processing window. For example, PEEK typically requires a melt temperature between 350°C to 400°C.
• Mold temperature: The mold temperature must also be optimized to ensure proper crystallization or amorphization of the material. For PEEK, the mold temperature typically ranges from 150°C to 200°C, while for PPS and PPSU, it may be slightly lower.

c. Cycle Time

• Cycle time optimization: High-performance materials often have slower cooling times, leading to longer cycle times. However, cycle time can be optimized by using the right balance of injection speed, pressure, and cooling channel design to minimize the overall production time.

4. Post-Molding Considerations

• Heat treatment: Certain high-temperature materials like PEEK may require post-molding heat treatments to optimize their crystallinity and mechanical properties. For example, PEEK parts might undergo annealing processes to enhance their strength and dimensional stability.
• Surface finish: Due to the high mechanical properties of these materials, the molded parts might need specific surface treatments such as polishing or coating to achieve the desired aesthetic finish or functional properties (e.g., anti-wear coatings).

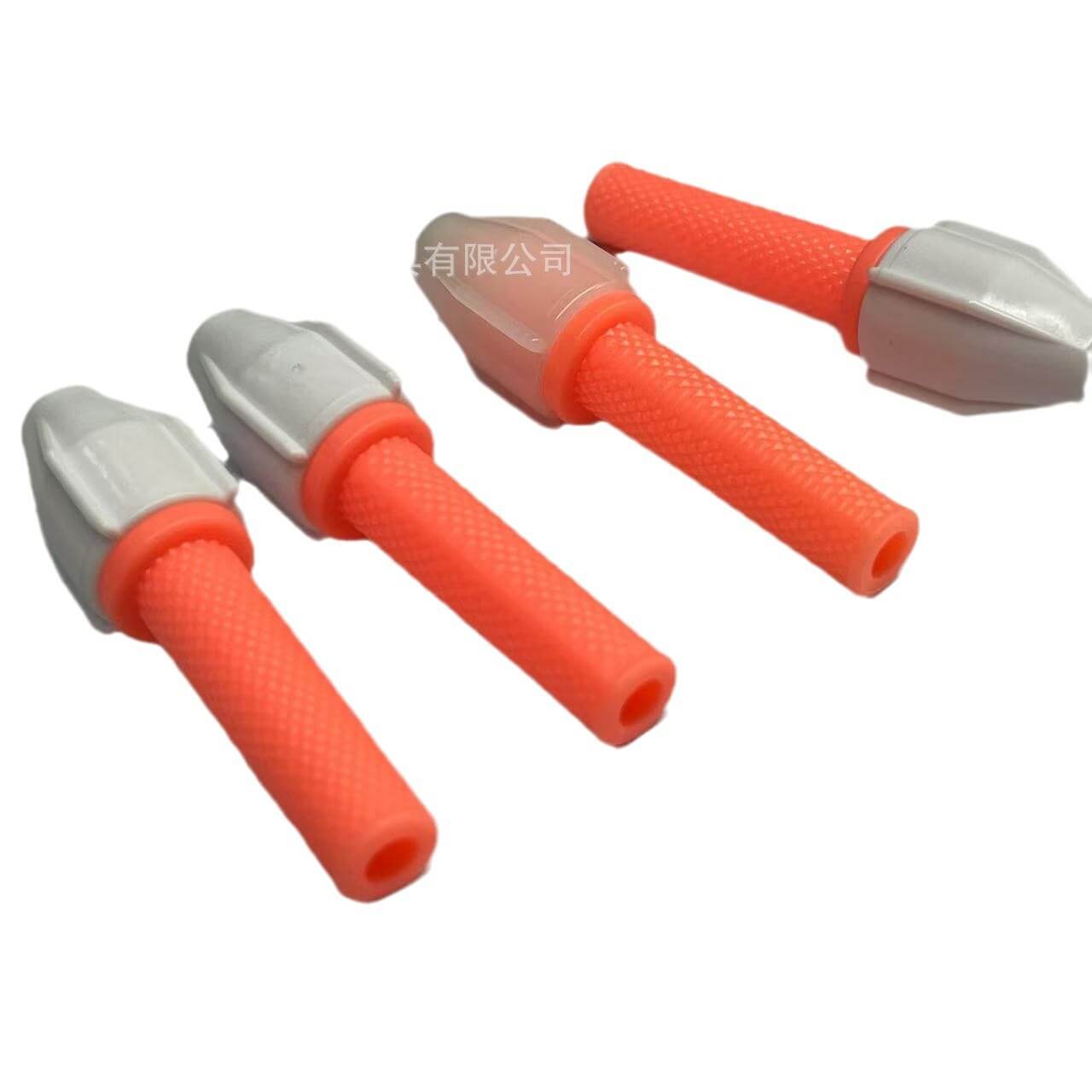

5. Applications of High-Temperature Molding Products

High-temperature materials like PEEK, PPS, PPSU, and PEI are ideal for applications in industries requiring high-performance components. These include:

• Aerospace: For manufacturing components like seals, bearings, and housings that must withstand extreme temperatures and mechanical stresses.
• Automotive: Used in high-performance automotive parts such as connectors, sensors, and fuel systems.
• Medical: Custom molded parts for medical devices like surgical instruments, diagnostic equipment, and drug delivery systems, where sterilization and biocompatibility are critical.

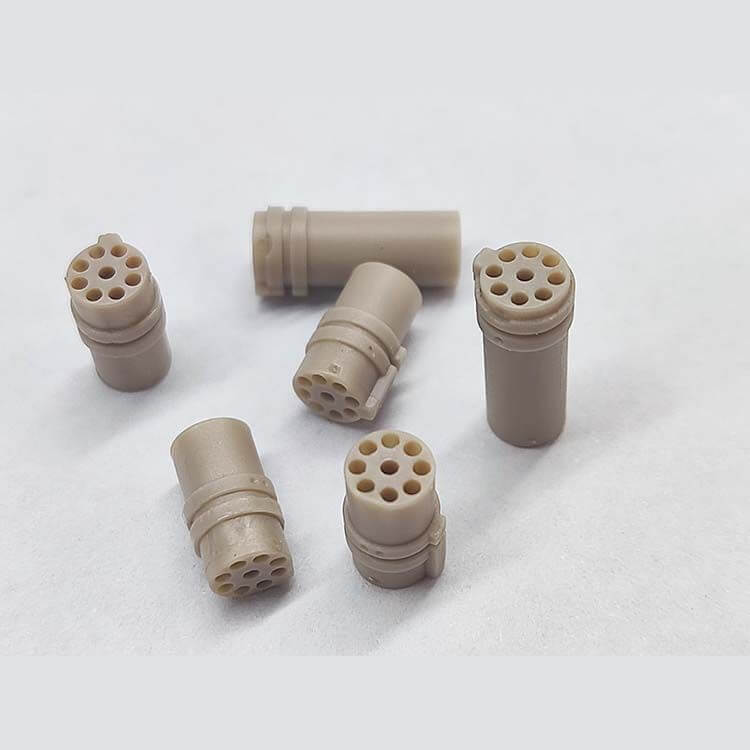

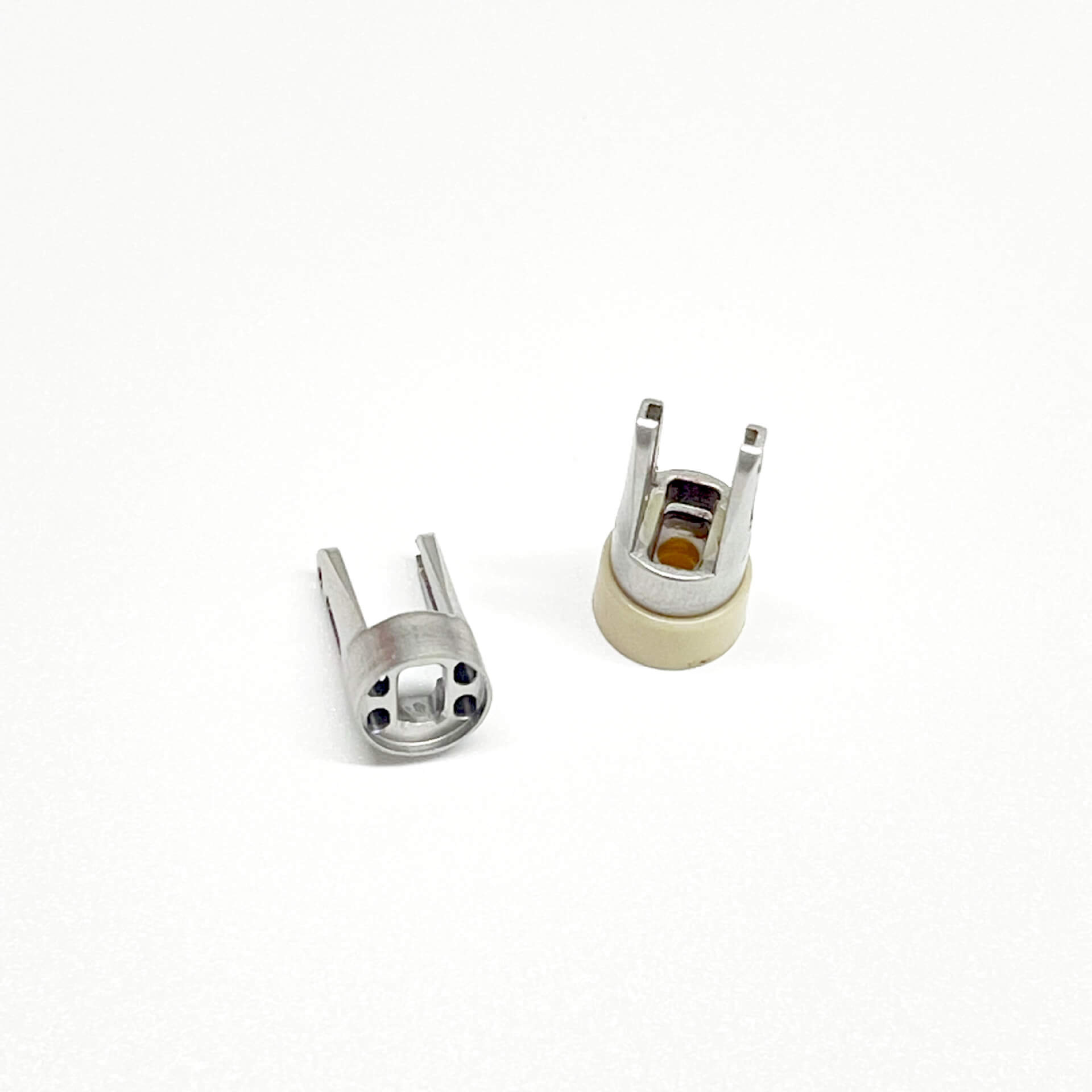

• Electronics: Used for creating insulators, connectors, and casings for electronic devices exposed to high temperatures or harsh environments.
• Industrial and Petrochemical: Components such as valves, pumps, and seals for use in chemical processing, oil and gas, and other heavy industries.

6. GHXLD’s Expertise in High-Temperature Material Molding

At GHXLD, we specialize in custom mold design and injection molding for high-temperature materials such as PEEK, PPS, PPSU, and PEI. Our expertise includes:

• Precision mold design: Tailored to each material’s unique requirements, ensuring optimal flow, cooling, and mold integrity.
• Advanced mold manufacturing: Using high-quality tool steels and surface treatments to create durable molds capable of withstanding high-temperature environments.
• Process optimization: We optimize injection parameters, temperature control, and cooling systems to reduce cycle time and ensure the highest quality parts.
• Comprehensive post-processing: Offering services like heat treatment, surface coating, and polishing to enhance part performance and longevity.

With GHXLD’s advanced capabilities, we help our customers achieve consistent, high-quality injection molded products using the most demanding high-temperature engineering plastics.
